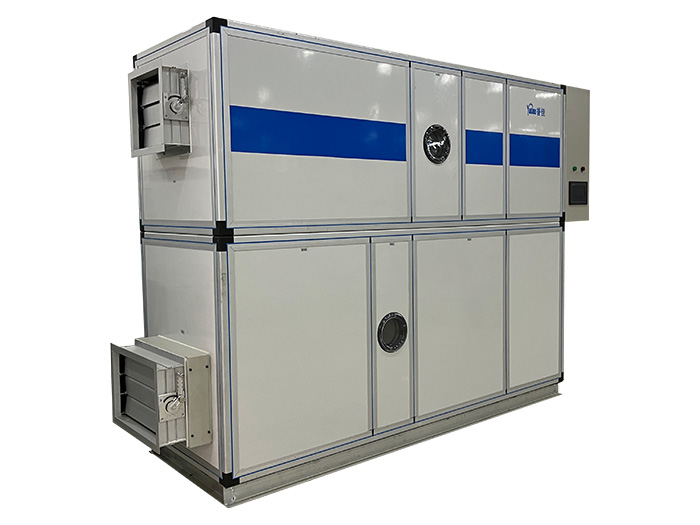

Rotary dehumidifier belongs to an important branch of the field of air conditioning, is a typical representative of temperature control dehumidification, air solid adsorption separation using the international common rotary metal silicate desiccant adsorption body.
In the process of dehumidification, the adsorption turntable rotates slowly under the drive device. When the adsorption turntable adsorbed water molecules in the treated air area reaches saturation, it enters the regeneration area for desorption and regeneration by high temperature air. This process repeats, and the dry air is continuously fed into the specified space after temperature adjustment to achieve high precision temperature and humidity control.
1. Moisture is removed by direct physical adsorption. It can control relative humidity (RH) as low as 1%, regardless of the surrounding environment, and can provide a standard capacity of 80M3/H to 42,500 m3 /H dehumidifier system
2, the runner edge is exclusively fixed with steel ring flange, and the runner strength is high
3, different models of units are equipped with different models of dehumidification runner, to ensure the uniformity of wind speed through the runner, so as to ensure the rated dehumidification and outlet residual pressure of each model of units under different working conditions
4, due to the use of patented properties of silica gel or molecular sieve desiccant, has excellent selective adsorption performance, can selectively adsorb water molecules; And discharge dust and other impurities, so it is not easy to clog.
5, the control system adopts PLC control, with good operation interface. Various important temperatures can be digitally displayed, and the operating status of each major component can be highlighted. When a fault is encountered, it can automatically diagnose and indicate the fault type.
